NIST’s stone test wall, just after a summer rain. Credit: J. Stoughton/NIST

The Test of Time: NIST’s Wall of Many Stones

Jason Stoughton, Leader, NIST Internal Communications and Inquiries Group, NIST Public Affairs Office

Frequented by more deer than people, the NIST stone test wall lives a fairly isolated existence. Out among the trees and the grass on the south end of the Gaithersburg, Maryland, campus, it cuts an imposing and visually bizarre figure. Set in the mortar of its technicolor face are more than 2,000 square and rectangular stone samples showing off practically every naturally occurring type and color of stone. Nearly 70 years old, it is the world’s longest-running weathering experiment for stone samples, as well as a reminder of the symbiotic relationship between science and industry.

Over the past 70 years, the stone test wall has served as a sort of check against so-called “rapid-weathering” tests conducted in laboratories. Builders want to know if the stone they select today will still be strong and visually appealing decades into the future. With rapid-weathering tests, a piece of stone can be subjected to years’ worth of abuse meted out by factors like sunlight, temperature changes and moisture, in just a matter of weeks. And although rapid-weathering is highly efficient and an industry standard, the stone test wall is the real deal. If you want to see what actually happens to a particular piece of stone after it’s been exposed to the elements over decades, NIST’s stone test wall stands ready and waiting to show you.

The worse for wear: one of many striking stone samples on the wall. This one is slate from, appropriately, Slatington, Pennsylvania. Credit: J. Stoughton/NIST

The current location of the stone test wall is on a secluded hill on NIST’s Gaithersburg campus. Despite the wall’s massive size and weight, Gaithersburg is actually its second home. It was originally constructed in 1948 on NIST’s original campus (then the National Bureau of Standards) in Northwest Washington, D.C. In 1976 the wall was moved to its present home in Gaithersburg and there it remains.

However, the story of the wall and why it was originally constructed, not to mention where all those stone samples came from, goes back over 140 years to when America was celebrating its 100th birthday.

Buy American

In the late 1800s, the industrialization and expansion of many American cities had created a boom in the construction industry. While many of those nice new buildings required stone for their construction, stone quarried domestically in the U.S. was oftentimes shunned by builders in favor of stone from older, more established sources outside the U.S. For example, an 1884 Department of the Interior report on petroleum, coke, and building stones notes that local stone from California was not trusted, and that “The first stone house erected in San Francisco, for example, was built of stone brought from China.”

Like any business trying to gain more customers, the U.S. stone industry naturally wanted to promote its products. And a perfect opportunity soon presented itself.

The first official world’s fair held in the U.S. was the Centennial International Exhibition of 1876 in Philadelphia. This wide-ranging event was not only a blowout celebration of the country’s 100th birthday but also a showcase for American-made goods and inventions. The exhibition featured an array of futuristic, newfangled products, like a steam-powered monorail, Alexander Graham Bell’s first telephone, and Heinz ketchup.

Among the many exhibits in Philadelphia was an impressively diverse collection of stone samples, all quarried from states and territories across the relatively young U.S. of A.

A small sample of the variety of stone contained in the wall. The wall holds 2,352 individual stone samples. This picture only shows about 70. Credit: J. Stoughton/NIST

Made to last (or not)

After the party in Philly wrapped up, the stone samples were eventually grouped into two large collections. One collection was shipped to Columbia University and the other to Washington, D.C.’s newly established National Museum, which later became the Smithsonian’s Arts and Industries Building.

But the Smithsonian’s newly acquired collection was still just a large grouping of loose stones, albeit one of fantastic variety. The stones would not be joined together in a wall until several decades later when the Smithsonian turned over its part of the collection to NIST in the early 1940s. The unique nature of the collection was not lost on building experts of the time. They recommended that a test wall be constructed from the many different stone samples to study long-term weathering in a consistent way.

The wall was eventually constructed in 1948, after World War II (NIST, like many other U.S. agencies, was highly involved in the war effort, and studying long-term weathering was a slightly lower priority than defeating the Axis powers). NIST combined the original stone samples with additional samples collected from other sources. In total, the finished wall contained 2,352 individual stone samples, quarried from 47 U.S. states and 16 foreign countries.

Some of Mr. Di Benedeto’s meticulous handiwork. Credit: J. Stoughton/NIST

Even the mortar holding the stones was purposefully selected for testing, with the entire right half of the wall set in high-calcium lime mortar, while the left half was set in portland cement mortar. And every single stone sample was meticulously set by one mason, Vincent Di Benedeto, working all by himself.

The finished wall stood in Washington, D.C., weathering away, for the next few decades. But the stones would be moved yet again. A year after America celebrated its bicentennial, the entire wall was moved — intact — and installed on the Gaithersburg campus in 1977, just over 100 years after the stone samples had originally been exhibited in Philadelphia.

Every type and color

The photos below show just a few picturesque examples of the wall’s many stone inhabitants.

Although many of the samples in the wall are rarely, if ever, used in buildings, some are quite popular. Indiana limestone and Potomac marble, used in buildings like the U.S. Capitol, are both present in the wall. Some of the wall’s other well-known residents include the Tennessee marble of the National Gallery of Art; marbles from Maryland and Massachusetts used in the Washington Monument; Colorado marble used for the Lincoln Memorial; and Mount Airy granite from North Carolina used in the Arlington Memorial Bridge.

It’s truly a rock wall for the ages, and, with any luck, it will stand for ages to come.

Time has not been kind to this sandstone from Cumberland, Ohio. A loose nugget sits in the weathered pocket. Credit: J. Stoughton/NIST
A fine-grained yellowish marble from Coimbra, Portugal. Credit: J. Stoughton/NIST
Light red limestone from Morrison, Colorado. Credit: J. Stoughton/NIST
Coarse limestone from New Bern, North Carolina. Credit: J. Stoughton/NIST
A miniature, asteroid-like landscape formed of red and gray sandstone from Marquette, Michigan. Credit: J. Stoughton/NIST
On the left, orange and green granite from Pompton Junction, New Jersey, also known as “Pompton Pink.” On the right, from Morristown, New Jersey, reddish-purple conglomerate. In the middle, the portland cement mortar that holds all the stones on the left side of the wall. Credit: J. Stoughton/NIST

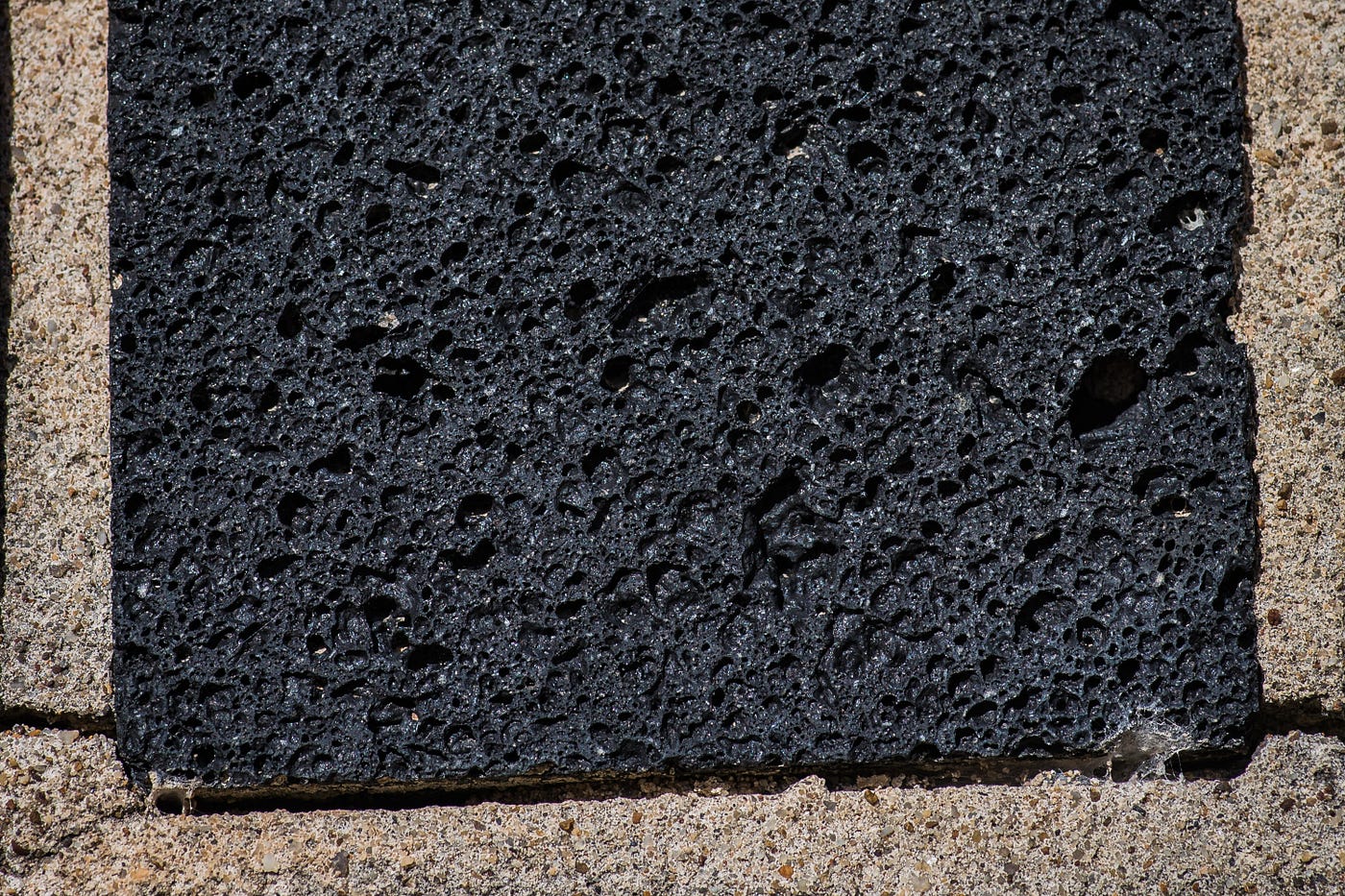

Black basalt from the state of Puebla in Mexico. Credit: J. Stoughton/NIST
Fossil-filled marble from Salzburg, Austria. Credit: J. Stoughton/NIST
The NIST stone test wall under the stars. Credit: J. Stoughton/NIST

Want to see stones from your state? Check out the searchable NIST stone wall website.

This post originally appeared on Taking Measure, the official blog of the National Institute of Standards and Technology (NIST) on January 16, 2018.
